Computer Vision on mobile phone - Reimagined

Needed to do computer vision on a customers machine with no possibility of mounting brackets nor cameras.
Reimaginded solution using mobile phone !!! No mounting brackets needed.

Summary of Video:

Reimagine-cv on cellphone
Reimaging Computer Vision (CV) on a mobile phhone
Reimagine-cv on cellphone
Problem Statement
Reimagine-cv on cellphone

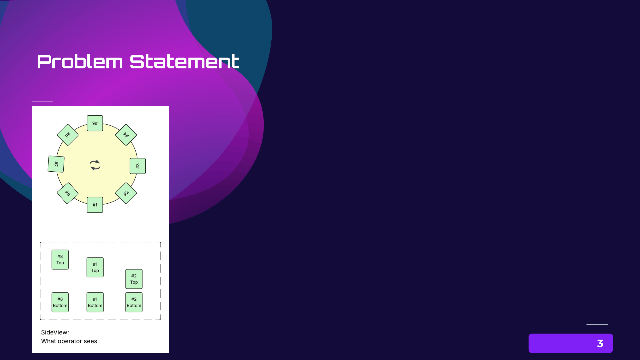

Problem Statment - Drawing
Rotary machine top view and side view
As machine rotates they move up and down
Machine moves to fast to observe and hand record
Reimagine-cv on cellphone

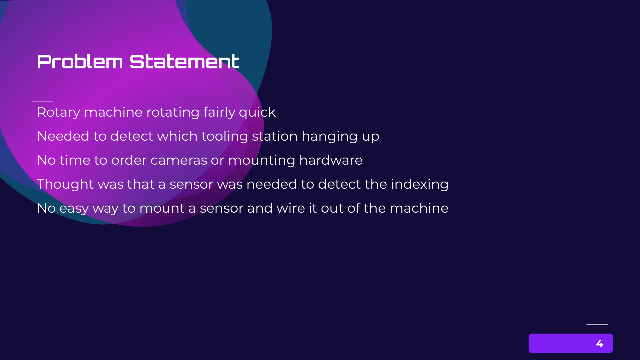

Rotary machine rotating fairly quick
Needed to detect which tooling station hanging up
No time to order cameras or mounting hardware
Thought was that a sensor was needed to detect the indexing
No easy way to mount a sensor and wire it out of the machine
Reimagine-cv on cellphone
Reimagine
Reimagine-cv on cellphone

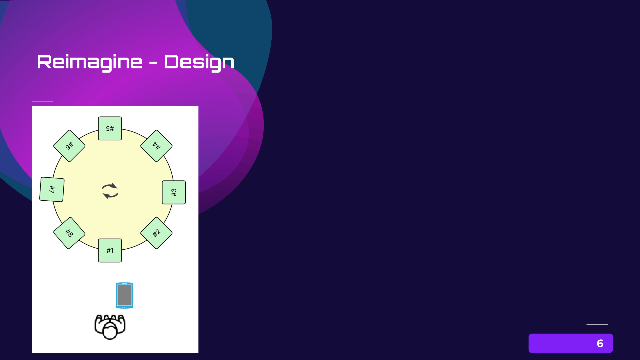

Stand in front of the machine and take a video on mobile phone
Reimagine-cv on cellphone

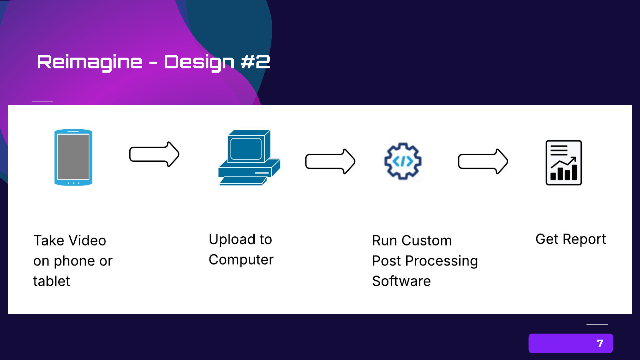

Flowchart of operation using post processing of the video
Reimagine-cv on cellphone

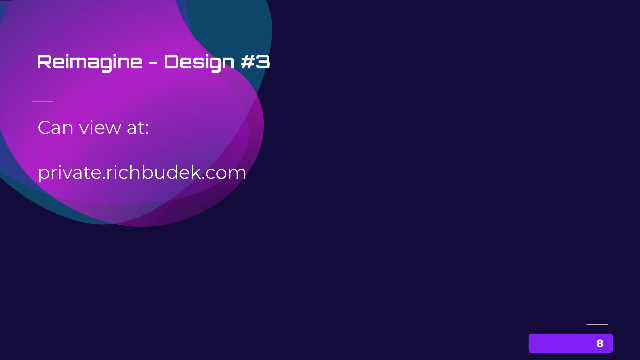

Can view at:

private.richbudek.com
Reimagine-cv on cellphone

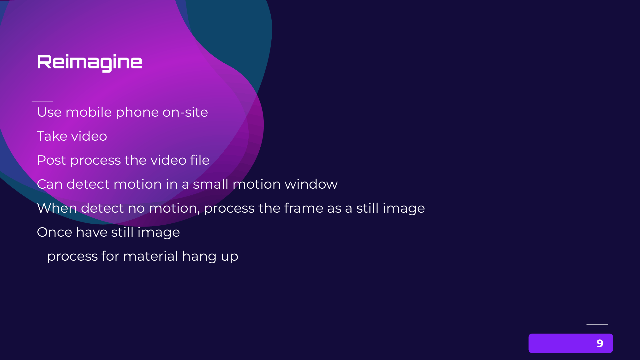

Use mobile phone on-site
Take video
Post process the video file
Can detect motion in a small motion window
When detect no motion, process the frame as a still image
Once have still image
_ process for material hang up
Reimagine-cv on cellphone

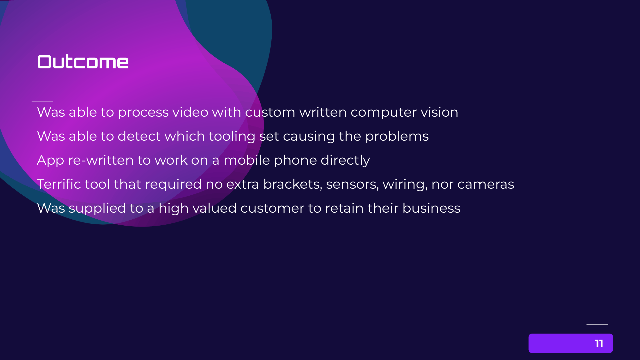

Outcome
Reimagine-cv on cellphone
Was able to process video with custom written computer vision
Was able to detect which tooling set causing the problems
App re-written to work on a mobile phone directly
Terrific tool that required no extra brackets, sensors, wiring, nor cameras
Was supplied to a high valued customer to retain their business
Reimagine-cv on cellphone

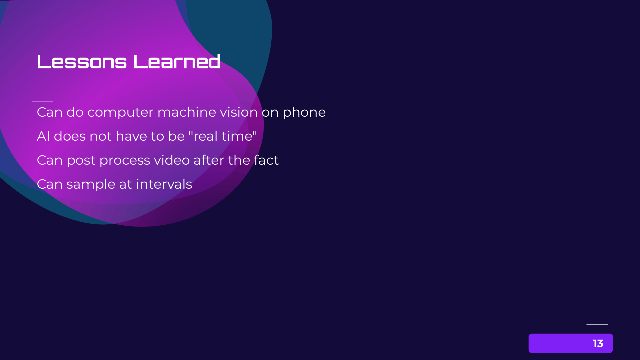

Lessons Learned
Reimagine-cv on cellphone
Can do computer machine vision on phone
AI does not have to be "real time"
Can post process video after the fact
Can sample at intervals
Reimagine-cv on cellphone
Thank-You
